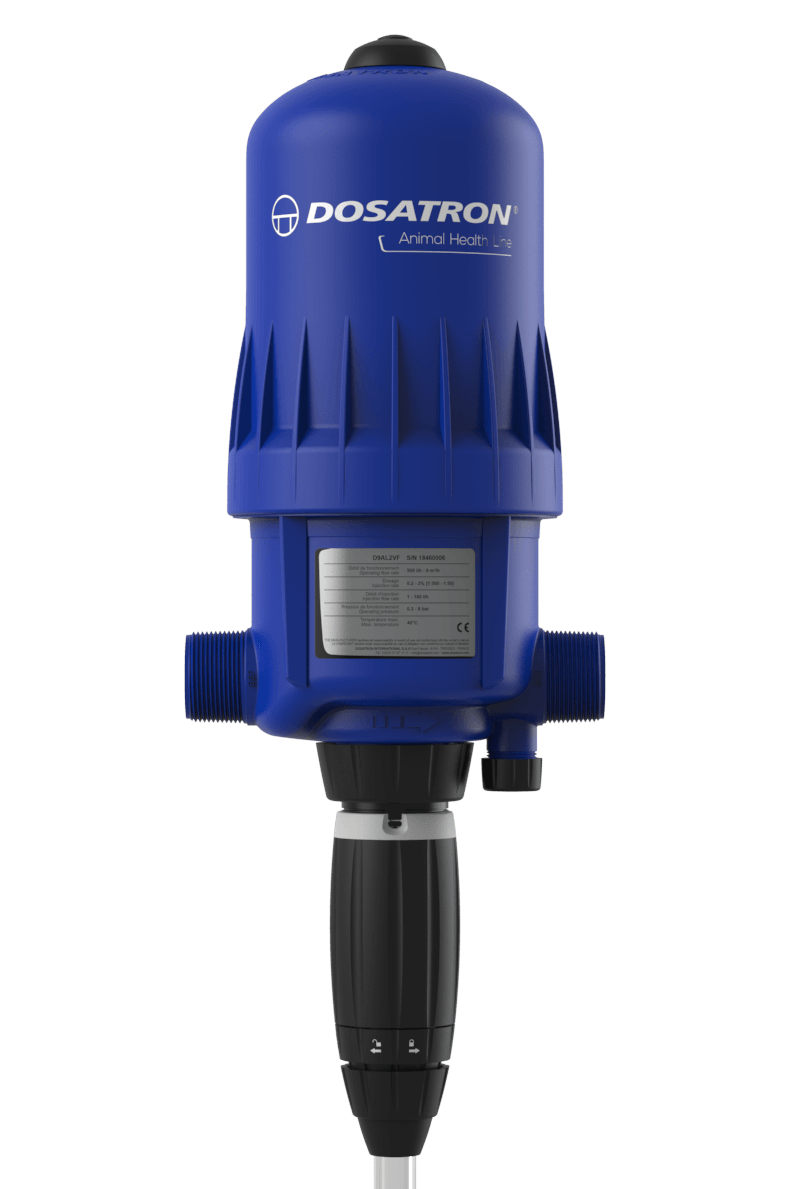

D9 AL2 VF Perfect for large-scale production. Treatment requirements from 500 l/h to 9 m3/h, for applications such as pig fattening, large breeding buildings or supplementation in large-scale cattle production.

Extended flow range.

Reinforced reliability and simplified maintenance.

Optimized chemical resistance.

Injection range 0,2 - 2% [1:500 - 1:50]

Water flow range 500 l/h - 9 m3/h

Operating water pressure 0,3 - 8 bar

Concentrated additive injection 1 - 180 l/h

Stroke volume ~ 1,7 l

Connections NPT-BSP 1"1/2 M Ø 40x49mm

Hose PVC - Ø 12x16 - Lg 1,75 m
