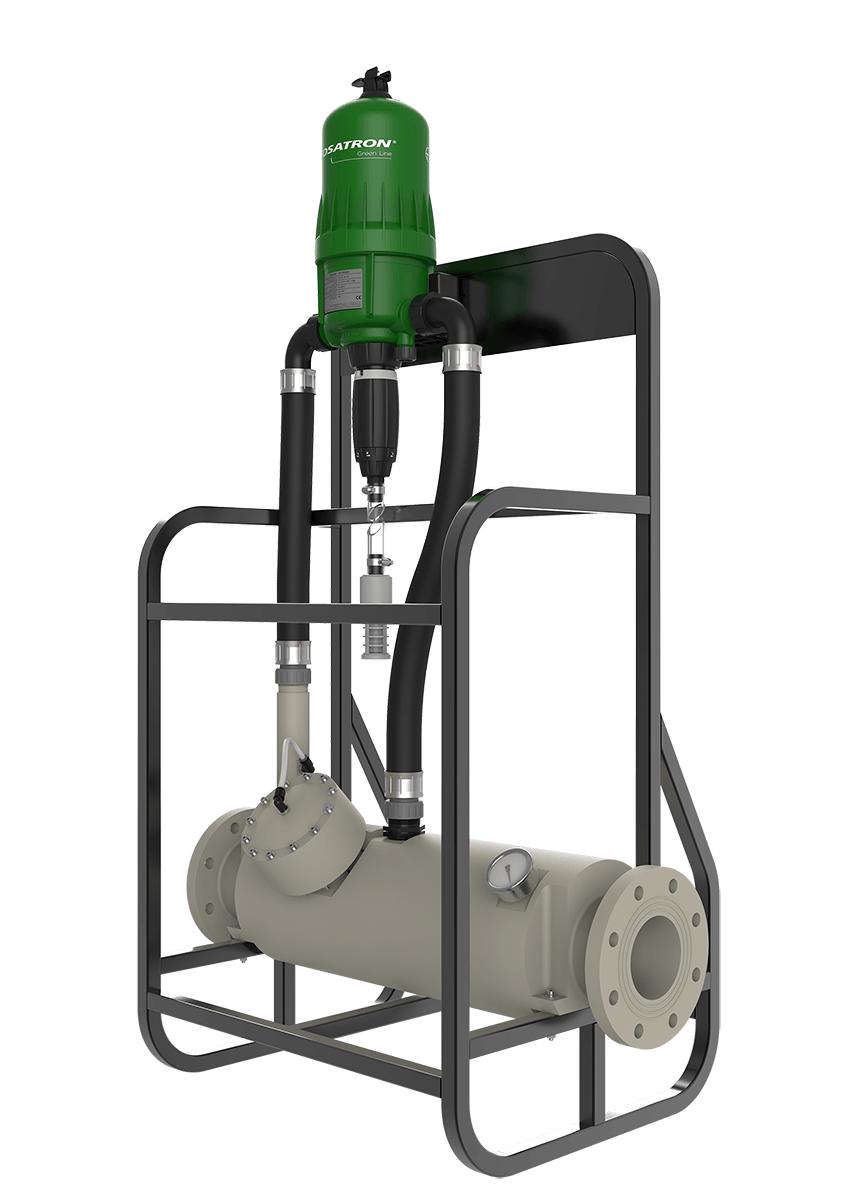

D90GL05BP - MEGAFLOW The mobile solution for high-flow applications Specific features Favours a homogeneous and qualitative production for controlled yields. Compatible with 100% of soluble, liquid, conventional and organic fertigation products. Fast installation and start-up without any further equipment. Robust and long-lasting material. Lifetime enhanced by simple and economical maintenance

Injection range 0,1 – 0,5 % [1:1000 – 1:200]

Water flow range 25 - 90 m3/h

Operating water pressure 0,5 - 8 bar

Concentrated additive injection 25 - 450 l/h

Stroke volume ~ 1,70 l

Connections Flanges DN 100 DIN ASME

Hose PVC Ø 20x27mm - Lg 4m
