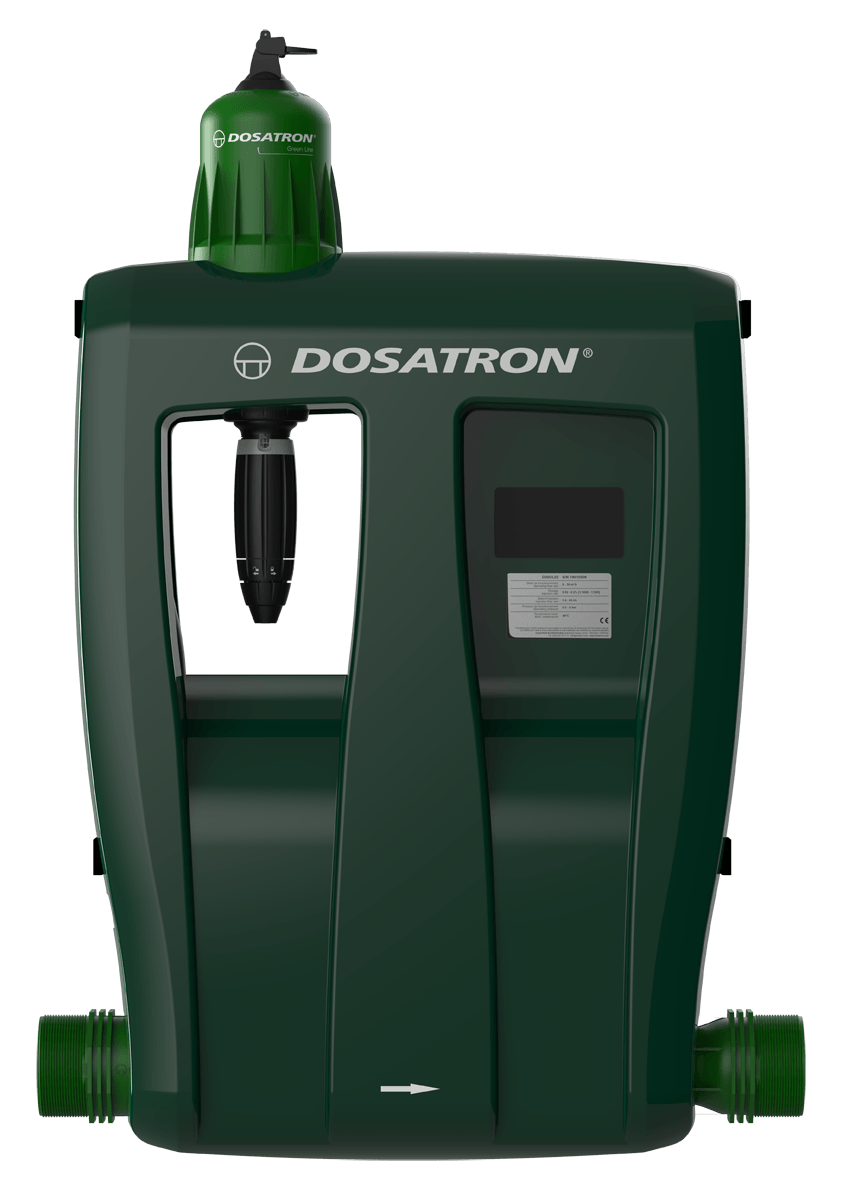

D30GL02 - A high-flow solution for irrigation The D30 GL range meets the needs of high throughput treatment from 8 to 30 m3. Unique and patented intelligent flow division technology Proportional dosing and without electricity Proportionality dependent on water flow Integrated homogenization

Injection range 0,02 – 0,2 % [1 :5000 – 1 :500]

Water flow range 8 - 30 m3/h

Operating water pressure 0,5 - 8 bar

Concentrated additive injection 1,6 - 60 l/h

Stroke volume ~ 0,53 l

Connections BSP 3'' M Ø 80x90mm + 2 flanges PVC DN 80 EN PN16

Hose PVC Ø 8x12mm - Lg 4m
