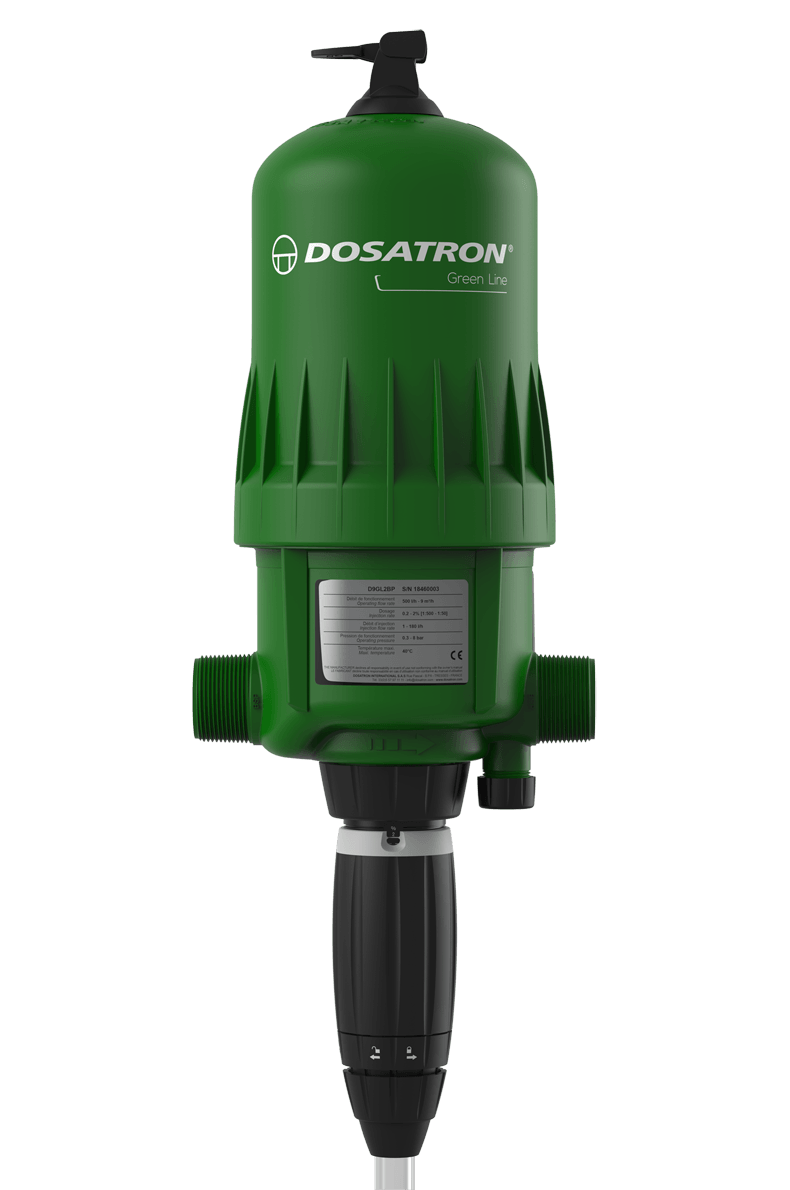

D9 GL2 - Fertigation Dosing Pump Ideal in harsh hydraulic conditions Convenient maintenance Optimized chemical resistance Enhanced reliability thanks to an extremely optimized design

Injection range 0,2 - 2% [1:500 - 1:50]

Water flow range 500 l/h - 9 m3/h

Operating water pressure 0,3 - 8 bar

Concentrated additive injection 1 - 180 l/h

Stroke volume ~ 1,7 l

Connections NPT-BSP 1''1/2 M Ø 40x49mm

Hose PVC Ø 16x22mm - Lg 1,75m
